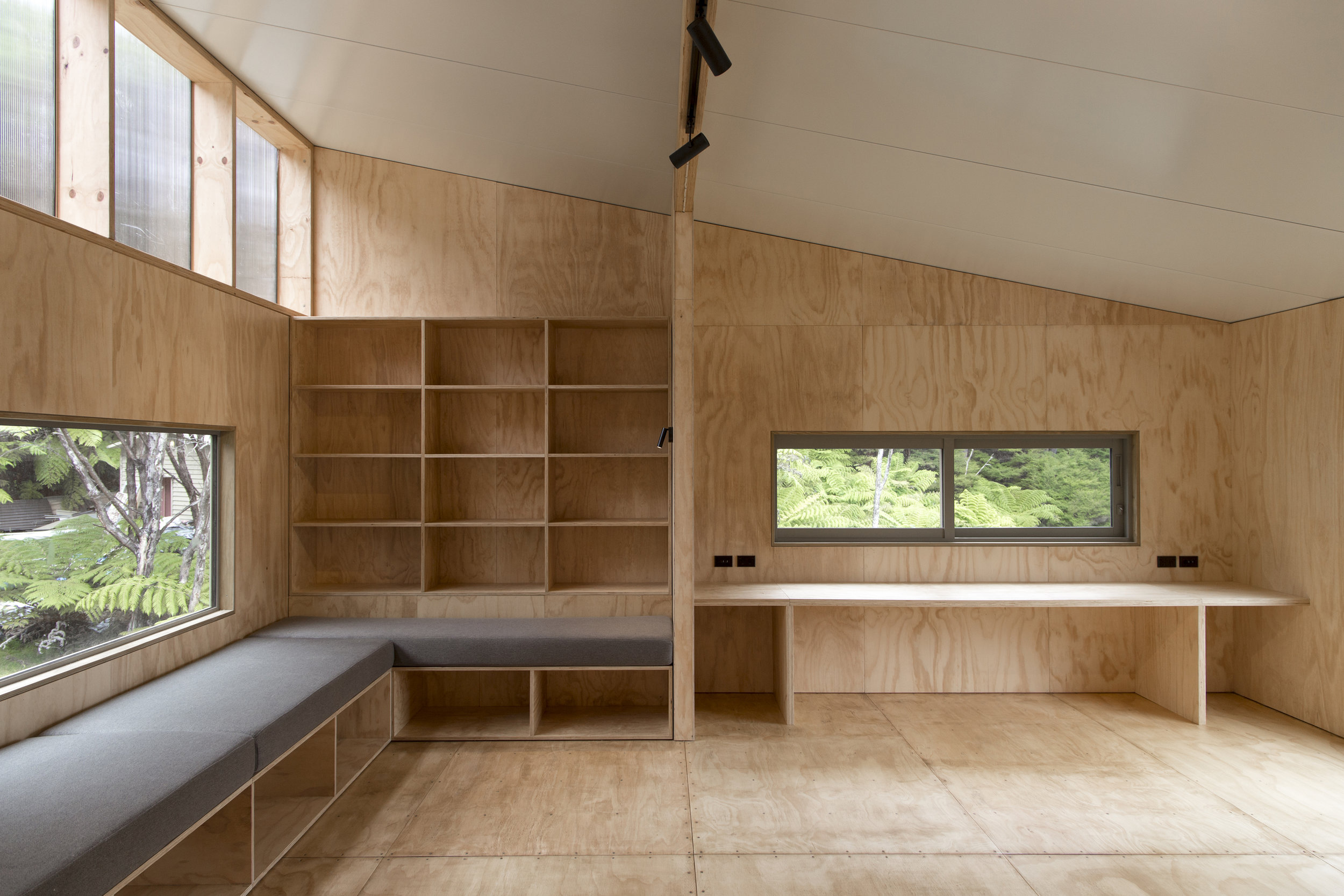

Motu Kaikoura_Built in Seating_8of10.jpg
       
     
Motu Kaikoura_East Elevation_3of10.jpg
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
       
     
Motu Kaikoura_Assembly_9of10.jpg
       
     
       
     
Motu Kaikoura_Assembly_10of10.jpg
       
     
       
     
       
     
       
     
Motu Kaikoura
       
     
Motu Kaikoura

NZIA Local Award Winner - 2018 - Small Project

Motu Kaikoura is a protected scenic reserve north-west of Great Barrier Island, managed by the Motu Kaikoura Community Trust. The lodge area is located on the southern side and accommodates research workers, education inititiatives, volunteers and public visitors to the unique island. In 2013 the communal building was destroyed by arson. SGA was approached due to their experience in prefabrication and the remote location demanded it.

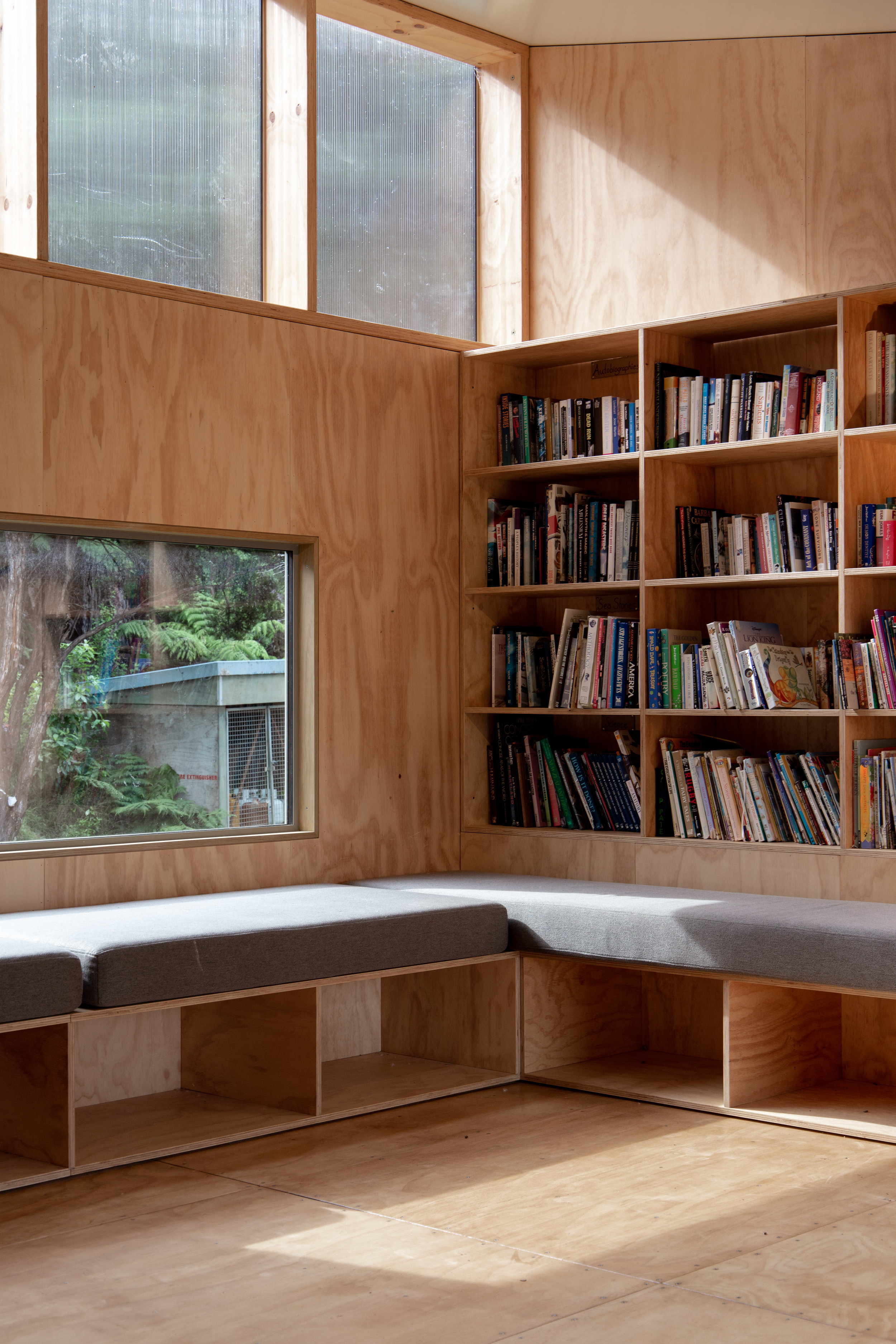

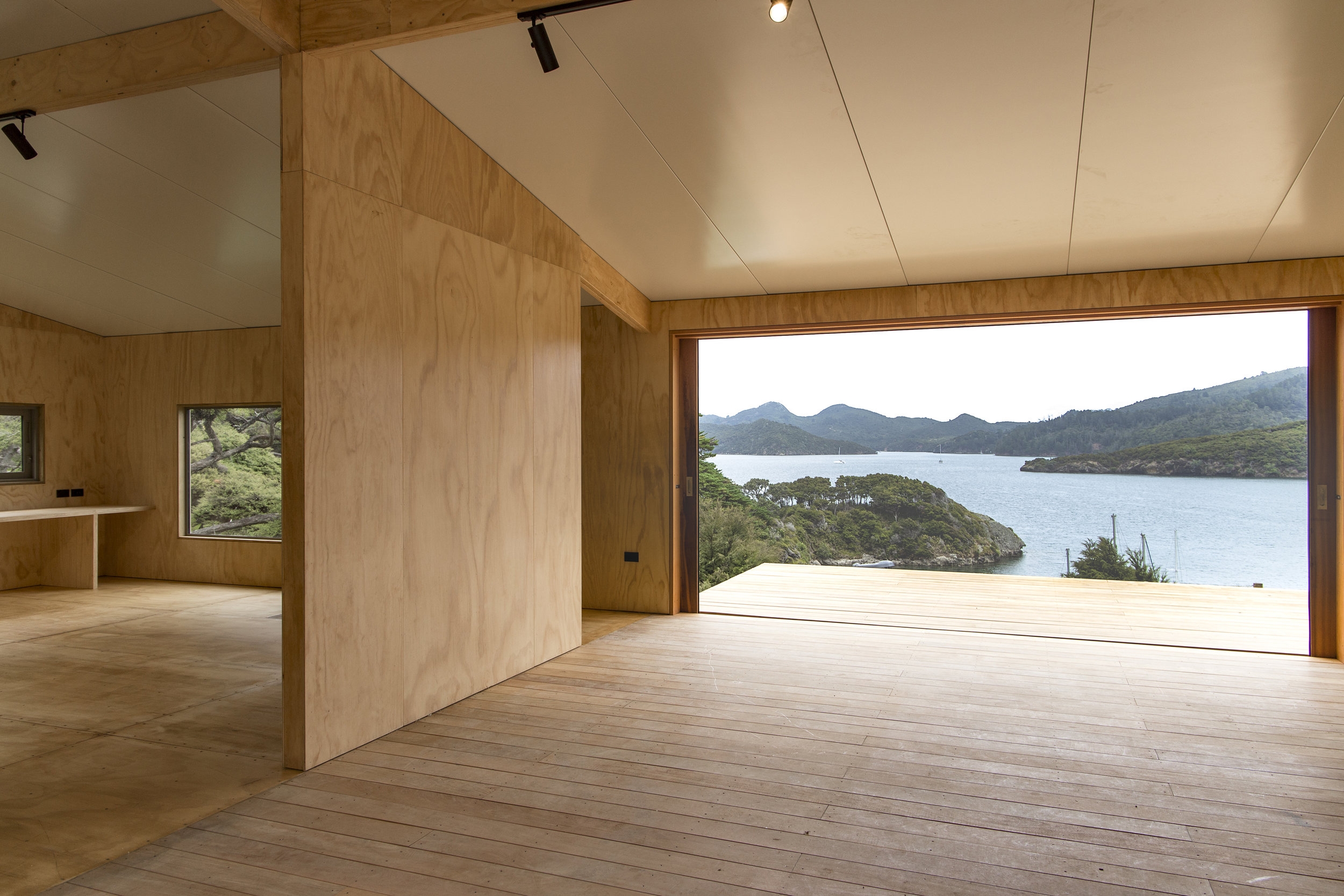

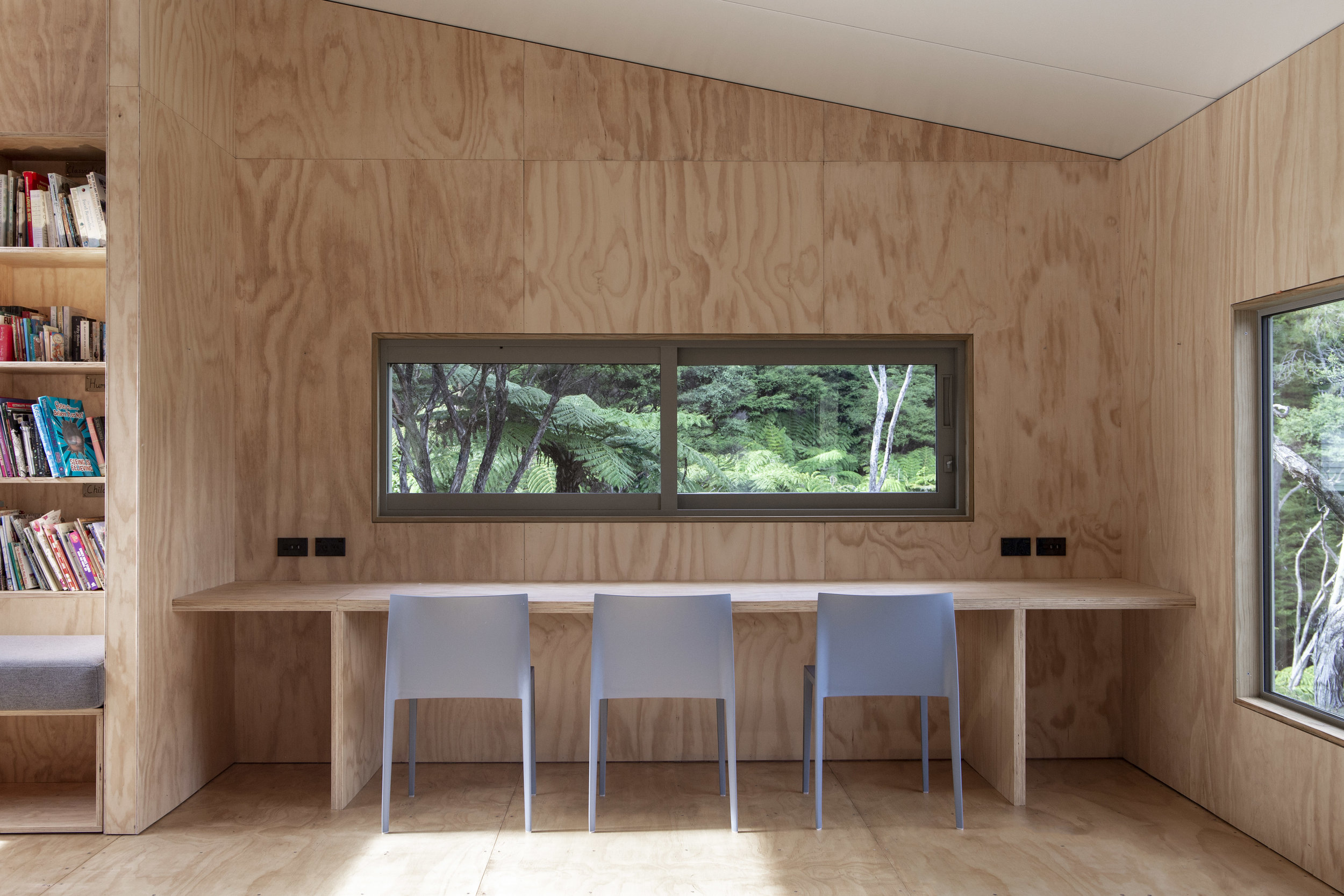

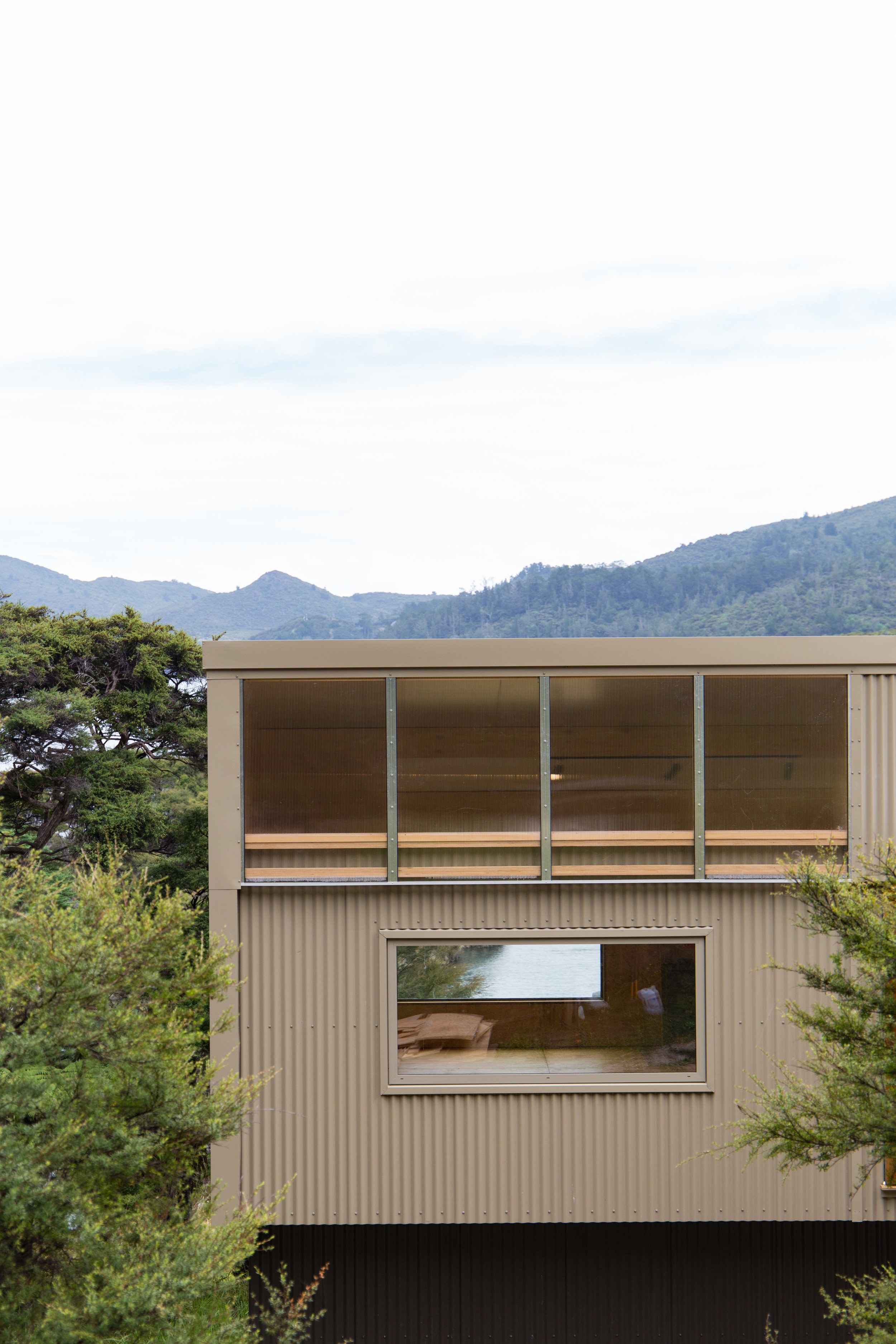

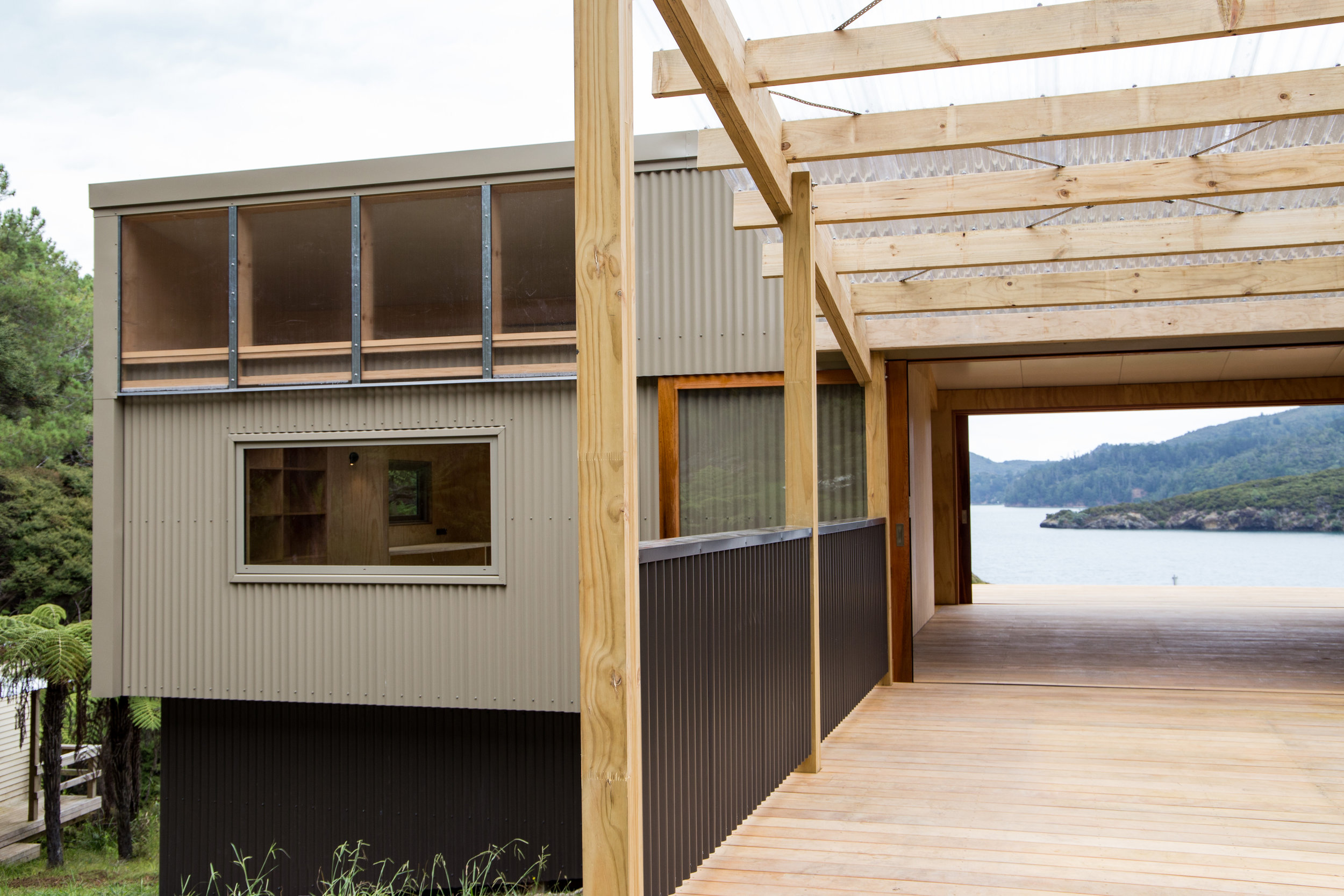

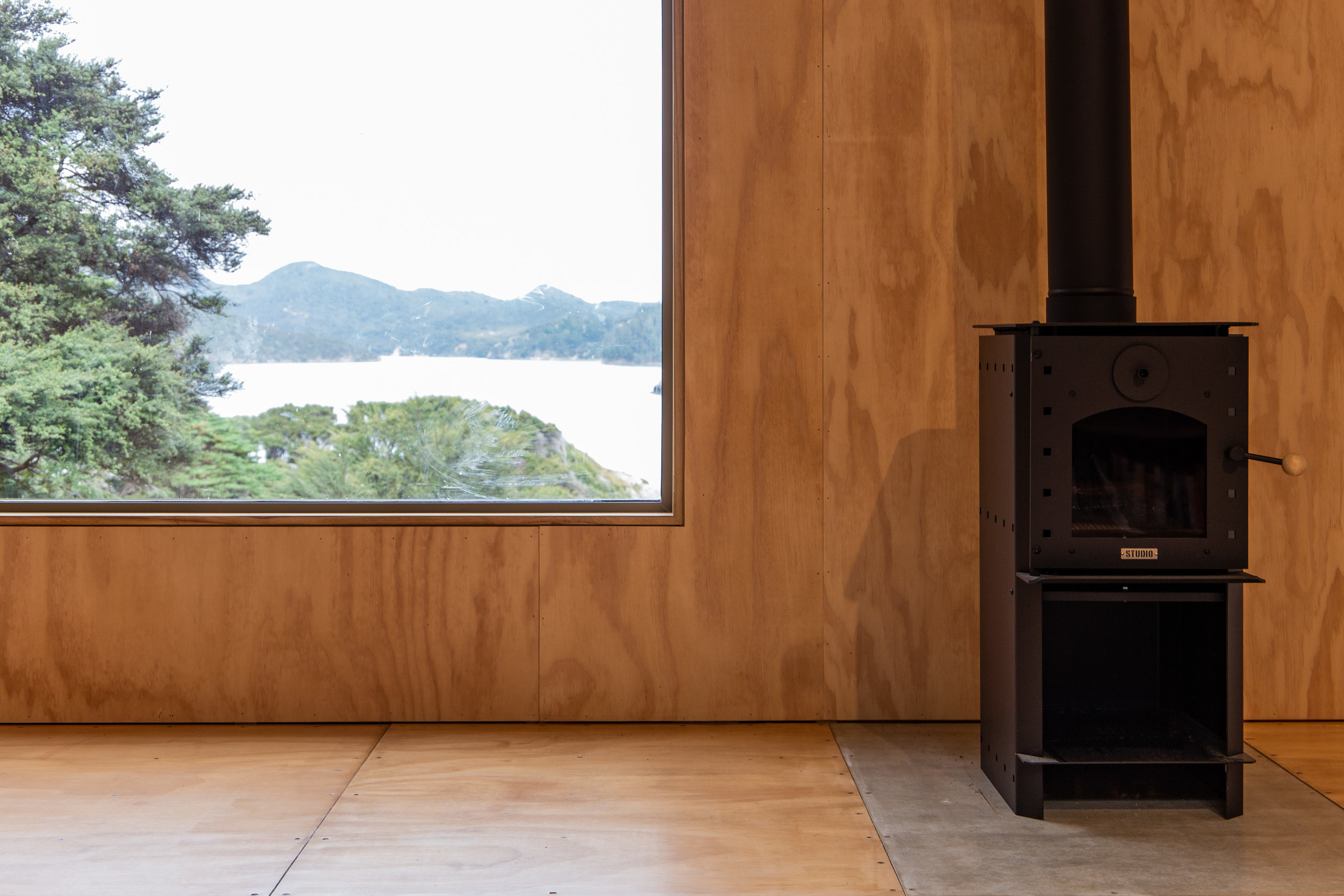

The facility, which houses a kitchen, dining and indoor/outdoor living is concieved of flexible spaces with strong connection to the environment through framed apertures and plentiful natural light. The directional breezway draws you in towards the hypnotic view with decks either side to be utilised depending on weather conditions. In response to the existing buildings, services and various directions of approach, the new saw-tooth form reaches up to grab the north sun and imitate the natural bush form. Materials are robust, the pre-finished exterior blends into the surrounding bush, contrasted by the warmth of the timber interior.

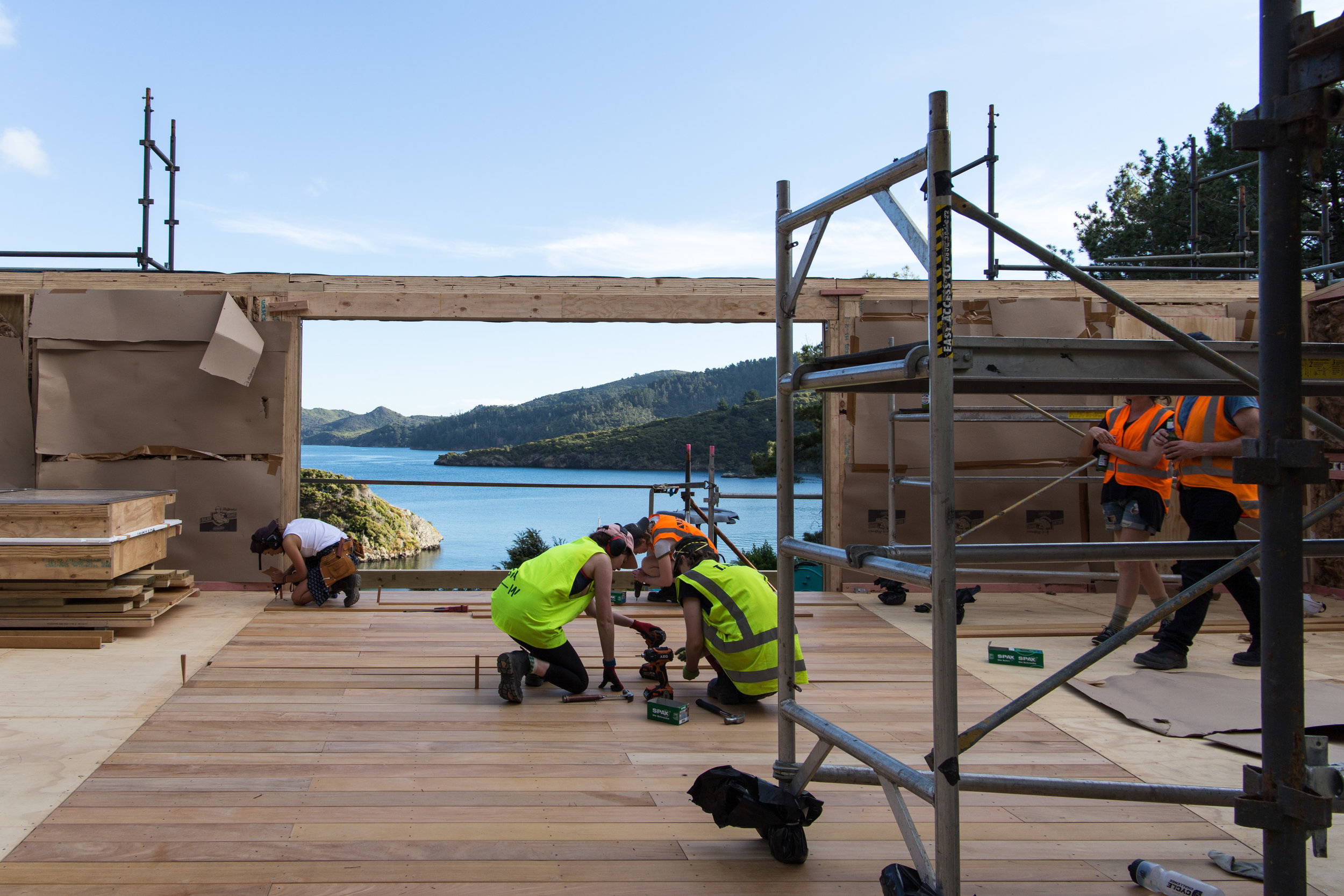

Due to a major shortfall in funding SGA concieved a creative solution to get the project off the ground. A partnership was formed with Architecture+Women NZ to deliver the building contract as an educational programme in which 16 architects and graduates would gain invaluable hands on experience. Due to this unique collaboration the project was also supported by many industry partners who generously donated/disounted building supplies.

The construction system was devised with transport limitations of land, sea and sky in mind, as well as buildability for the apprentice team and the Trust’s environmental policy. The panelised building components were constructed in the SGA Workshops in Kingsland and then flat-packed and heli-lifted on to the foundations from a barge in the passage below. The method of construction and story of assembly are proudly expressed in the detailing and finishing.

NZIA Awards Jury Citation: This project represents a generous investment in supporting community engagement and training women architects in construction processes in partnership with Architecture and Women NZ. The building required the development of a clever modular system to enable it to be prefabricated, delivered to the remote island site – via helicopters and barges – and finally constructed. The resulting building is a clear and simple gathering place for a deserving community.
